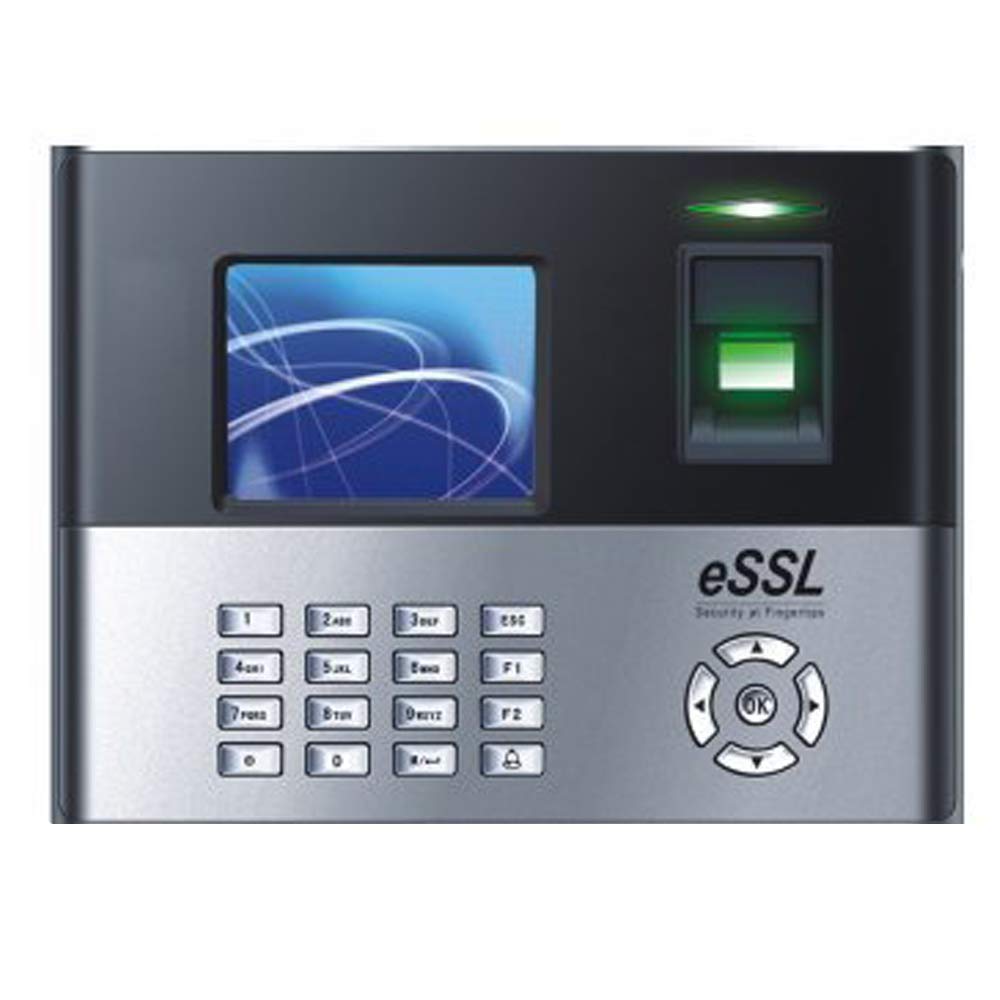

FINGER PRINT - X990

Product Highlights

Features:

STORAGE CAPACITY

Fingerprint Capacity : 10000
Card Capacity : 10000
Transaction Capacity : 100000
Card Reader : Inbuilt proximity card reader (Optional Mifare, HID prox)
CPU : 32bit microprocessor
SDRAM : 128 MB Nand Flash
Flash : 256 MB Nand Flash
Kernel : 2.6

BIOMETRIC

Fingerprint sensor : 500 DPI Optical sensor
FAR : <=0.0001%
FRR : <=1%
Identification speed : <0.5 sec
Algorithm Ver : 10

AUDIO/VISUAL

Display : 3″ Color TFT
Keypad : Yes
LED Indicator : Green/Red
Schedule Bell/Speaker : Mini Speaker

COMMUNICATION

TCP/IP, USB, (Optional : WiFi, GPRS)
Push data : Yes (support both static IP and domain server) Standard Features : work code,SMS,DLST, Self service query, Status Switch

POWER & ENVIRONMENT

Power Supply : DC 12V — 1.5Amp
Operating Temperature : 0oC – 45oC
Operating Humidity : 20% – 80%
Dimension(in mm) : (L)210 x (W)157 x (H)40

ACCESS CONTROL

Wiegand : In & Out both 26 or 34 bit (With or without site code)
Relay : 12 V relay for lock EM lock, Bolt Lock or Strike lock
Support Fire Alarm : Yes
Door Sensor : Yes
Anti Passback : Yes
Door Bell : Yes

EXIT READERS

Support exit readers : 101 HE , FR 1200, Push Button, KR500, Notouch, KR503

OPTIONAL

Battery : Yes
Card readers : Mifare/HID Prox
Communication : WiFi/GPRS
Sensor : Mifare/HID Prox

COMPATIBILITY

Compatible with Multi Door controllers via weigand
External Speaker output available (Optional)
External Bulb output available (Optional)
Support External Printer

COMPATIBLE SOFTWARE AND SDK

eTimeTrackLite desktop & web
SDK for desktop applications
Web based Device Management application using Push data. Helps developers & integrators
Supports 3rd Party Payroll/HRMS/ERP and Other applications

MAJOR APPLICATIONS

Time & Attendance , Canteen Management, School Attedance, Production Management, Gym & clubs
